Sites often establish proxy servers for security, performance, and usage tracking purposes. If the Web Central application server is sitting behind a proxy server, that proxy server receives and forwards all requests from the Smart Client to Web Central, and also receives and forwards all responses from Web Central back to the Smart Client.
In general, if Microsoft Internet Explorer can connect through a proxy server, the Smart Client should also connect through that proxy server as well.
The Windows operating system contains built-in tools for configuring proxy server settings. If you use these built-in tools, all programs built on the .NET framework -- including the ARCHIBUS Smart Client -- will use these proxy server settings.
Depending on your preferred IT practices, you can set the proxy server settings in several ways:
• Using the Internet Explorer preferences, if you wish to set proxy settings for the user account,
• Using the Windows netsh utility, if you wish to set proxy settings for the local system, or
• Using the Windows Credential Manager, if you need to store a username and password for the proxy server encrypted in the Windows password vault.
The connection instructions in this document are needed only for forward proxy servers, not for reverse proxy servers.
A reverse proxy makes the Web Central server appear to the Smart Client just like an ordinary application server. No special configuration for the Smart Client or the client browsers is necessary. The clients makes ordinary requests for content using URL of the reverse proxy. The reverse proxy then decides where to send those requests, and returns the content as if it were itself the origin.
A typical usage of a reverse proxy is to provide Internet users access to a server that is behind a firewall. Reverse proxies can also be used to balance load among several back-end servers, or to provide caching for a slower back-end server. In addition, reverse proxies can be used simply to bring several servers into the same URL space.
Reverse proxy servers work the same way if a site has implemented SSO. From the point of view of Web Central, reverse proxy acts like a typical SSO server: it inserts HTTP headers with SSO information, e.g. “username”. Again, you do not need to perform any extra steps to configure the Smart Client or your browsers in the SSO configuration. You need only configure Web Central to use SSO per the information in the ARCHIBUS System Management help in the System Management / Configuring Authentication topics.
You can establish your proxy server settings using Internet Explorer, Google Chrome, or in fact any browser that uses the Windows conventions to store proxy server settings to the Windows registry.

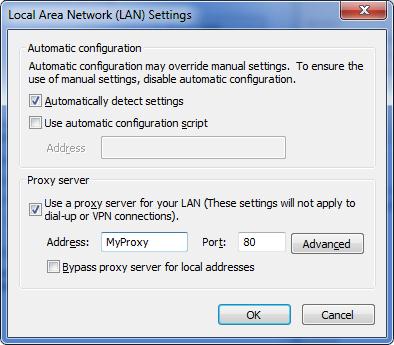

For most networks in which Web Proxy Autodiscovery (WPAD) has been established, the automatically detect settings option will find the proxy server configuration with no other adjustment. Otherwise, you can enter the proxy server settings in the Connections / LAN Connections dialog of the Tools / Internet options command shown below.
The Windows netsh utility has a number of options under the "netsh winhttp set proxy" to configure the proxy server settings for all users of this local system. A typical invocation is below.
netsh winhttp set proxy proxy-server="http=myproxy;https=sproxy:88"
You can use this utility from the command line or in scripts. The utility is also useful for tracing network traffic, and for checking if there is an existing proxy server setting.
For instance, the following command will show if there are any existing proxy server settings.
netsh winhttp show proxy
If you have made proxy server settings in Internet Explorer, you can import them with this invocation:
Netsh winhttp import proxy source=ie
If you wish to clear your proxy server settings, you can do so with:
Netsh winhttp reset proxy
If your proxy server requires a username and a password, you can store these in encrypted form in the Windows Vault. You can access the vault through the Credential Manager in the Control Panel.

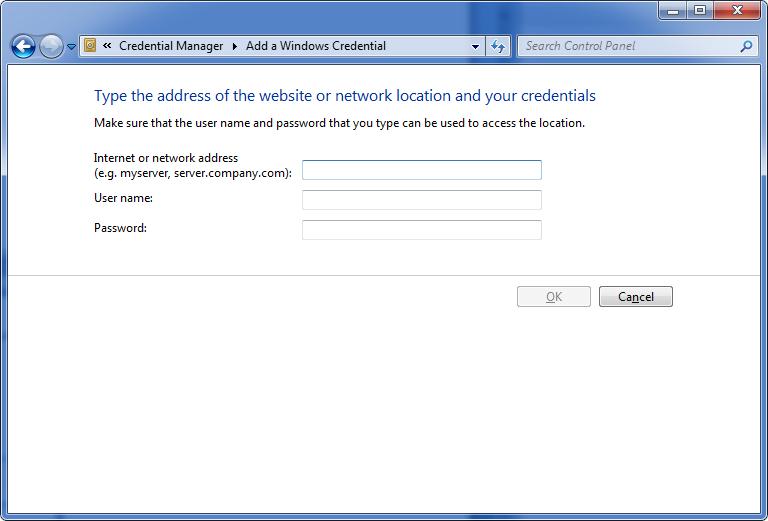

In the Credential Manager, choose Add Windows Credentials, and then enter the address of your proxy server and the username and password it requires:
You may be able to connect the Smart Client to Web Central perfectly under one account (say the administrator account that you installed with) but not be able to connect under another (say the non-administrator account the CAD specialist is using). In this case, check the proxy settings for the second account, as proxy server setting can change for different users.
Also realize that even within the same user account, you can invoke different settings if you run the Smart Client as a non-admin user, and if you run the Smart Client using administrator privileges in that same account.
You can review the proxy settings with this command line utility:
netsh winhttp show proxy
If you feel you have configured the proxy server correctly but still are not able to connect the Smart Client to Web Central, you may wish to enable network tracing to review the requests and responses and search them for error. For instance, the network trace may reveal the "417 Expectation Failed" error discussed below.
One way to trace network events is to use netsh to enable tracing.
netsh trace start capture=yes
Try your connections. When you are finished use:
netsh trace stop
The command will tell you the location of the event trace log (etl) file. You can review this file using the Event Viewer, which is accessible via the Windows Control Panel under Administrative Tools.
http://msdn.microsoft.com/en-us/library/windows/desktop/dd569142(v=vs.85).aspx
Some administrators prefer to use an opensource network protocol analyzer WireShark (www.wireshark.org) as being easier-to-use than netsh.
If you Sign On to the Smart Client using a server machine name (e.g. http:/mywebcserver:8080/archibus/), and you fail to connect to Web Central via the proxy server, try connecting using the server machine's IP address 9 (e.g. using http://10.1.2.4:8080/archibus/). If this test is successful, check how your proxy server is configured with respect to DNS resolution.
By default, the .Net framework sets expect100Continue to "true". If in your network trace you see an “HTTP/1.0 417 Expectation Failed” error from your proxy server when you try to connect to it using the Smart Client, you can resolve the issue using the setting below. The ARCHIBUS Smart Client will pass the values in the .Net <system.net /> tag to the Microsoft Windows WinHTTP services.
Smart Client Version 19.3
Create a C:\Program Files (x86)\ARCHIBUS\19.3\SmartClient\SmartClient.exe.config file with the following content:
<?xml version="1.0" encoding="utf-8" ?>
<configuration>
<system.net>
<settings>
<servicePointManager expect100Continue="false" />
</settings>
</system.net>
</configuration>
Smart Client Version 20.1
Add the following content to the “configuration” node in the C:\Program Files (x86)\ARCHIBUS\20.1\SmartClient\SmartClient.exe.config file:
<system.net>
<settings>
<servicePointManager expect100Continue="false" />
</settings>
</system.net>
