A thematically highlighted drawing uses a query that highlights asset symbols by colors representing the themes or owners to which the asset symbols are assigned. A thematically highlighted drawing is color coded to show the multiple values. For instance, you can highlight rooms by department or standard, or highlight vertical penetrations by standard.

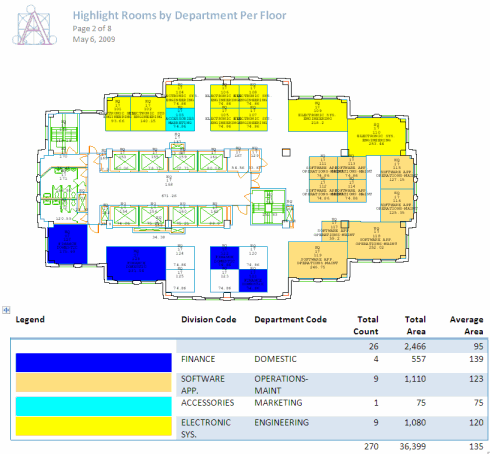

The image below shows a paginated report that includes a thematically highlighted drawing, rooms by department by floor.
