Path: Technologies / User Interface Add-Ins / HTML5 Drawing Views / Trace and Connect non-Room Assets
Several APIs are provided in HighlightController

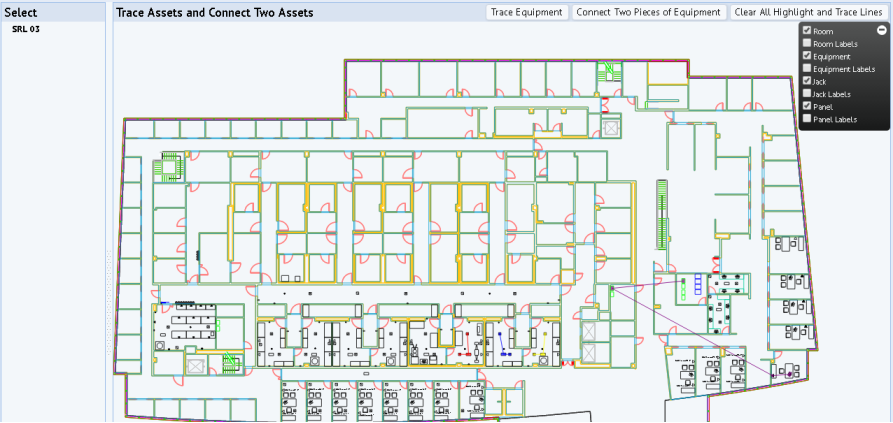

to support programmatically drawing trace lines among assets.The trace line in the drawing below connects four assets in three spaces.
Function |
API |
Example |
---|---|---|
Highlight and draw a trace line between two assets with the specified color. Default is 'blue' if you do not pass in color parameter. |
traceAssets: function(svgassetIdFrom, assetIdTo, color); Where
|
|
Store all the assets that are not found for trace and store them into a map. You can use |
getMissingAssets: function(type); If type is 'trace', returns in JSON format: {assetFrom: [], assetTo: []}, |
|
Reset the JSON map for the missing assets of the specified type. |
resetMissingAssets: function(type); |
|
You can register a custom 'click' event when the drawing control is constructed. With the custom event handler, you can call the trace and highlight API to connect two or more assets based on the drawing state.
config['events'] = [ {'eventName': 'click', 'assetType' : 'eq', 'handler' : this.onClickEquipmentOrJack, 'bbox': {width: 25, height: 32}}, {'eventName': 'click', 'assetType' : 'jk', 'handler' : this.onClickEquipmentOrJack} ];
drawingState
, to record whether the connect state is on or off, and create an array to store connected assets:drawingState: 'select',
connectAssets: [],
onClickEquipmentOrJack: function(params, drawingController) { ... if(controller.drawingState == 'connect'){ controller.connectAssets.push(assetIds); if(controller.connectAssets.length == 1){ //prompt for user-action ... } else if(controller.connectAssets.length == 2){ ... drawingController.getController("HighlightController").traceAssets('svgDiv-srl03-svg', controller.connectAssets[0], controller.connectAssets[1], 'purple'); controller.connectAssets = []; } } }
Example View: http://localhost:8080/archibus/schema/ab-products/solutions/programming/drawing/ab-ex-dwg-html-control-connect-trace.axvw
