Compliance Violations Map

The Compliance Violations Map provides a comprehensive picture of violation status world-wide. The report provides a map view with both a drill-down list and Filter console to enable you to restrict the view to the locations you want to review. The map includes marker symbols over locations containing violations. These markers are color-coded to show areas by critical factors, such as violation severity, enabling you to quickly evaluate violations by location and to assess areas of concern.

The map enables you to get more details in the following ways:

When you mouse-over a map marker, a tool tip provides the location name.

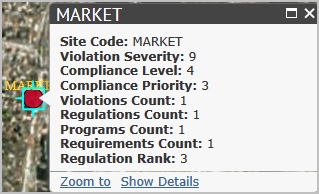

When you click the marker, a pop-up window identifies the location, the violation severity, Compliance Level, Compliance Priority, Regulations Count, Compliance Programs Count, Requirements Count, and Regulation Rank. The values for Level, Priority, and Rank are computed for the location depending on the selections for the marker symbol and filters you select. See the below section About Marker Symbol Selections.
When you click the Show Details link, a larger pop-up window shows the violations used to summarize information for that location.

Prerequisites

To view violations on the map, the following are required:

You must develop data for the geographic hierarchy (Country, Region, State, and City). See Geographic Locations and Map Views.
You must develop data for your buildings, including the Address 1, City, and State fields. The application requires this information to place the building on the map. You must also associate the buildings with sites. See Developing Locations.

The locations must have violations associated with them, as the drilldown list for locations shows only locations that have violations. You must enter a site location for a violation to view the violation on this map. See Managing Compliance Violations.

About Marker Symbol Selections

Across the top of the map, there are selection lists that you can use to make the following selections for the marker symbols:

Marker Size by
- Violation Count
- Violation Cost
Marker Color by:
- Violation Severity
- Compliance Level + Severity
- Severity + Compliance Priority
- Severity + Regulation Rank
- Compliance Level + Priority
Marker Color Method by:
- Average Value
- Highest Count
- Highest Risk _ Select the Minimum Threshold
- Lowest Risk - Select the Minimum Threshold
Minimum Threshold: If you select Highest Value or Lowest Value for the Marker Color Method, then you also select the Minimum Threshold. This setting specifies the minimum percentage of the total violation count that a value must have before it can be considered the highest or lowest value.
