Export and Print Highlighted and Labeled Floor Plans to Word or PDF

Note: This topic covers the basic features of exporting drawings for printing to PDF or DOCX. For a complete description of the features including selecting background layers to export, or making ad hoc adjustments to a drawing, see Options for Printing Drawings from the Space Console.

Once you highlight and label a floor plan, you may want to share it with others who do not have access to the Archibus system. For example, you may want to:

To share floor plans with staff who do not have access to the Archibus system, you work with the Export commands.

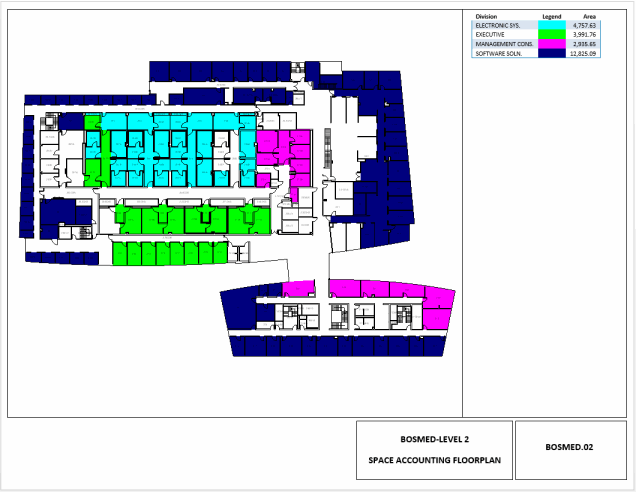

For example, the below image shows a floor plan highlighted by division and exported to a Word document.

This topic has the following sections:

Choose a highlight and/or border highlight

To export the floor plan drawings, you use the commands on the Export icon:

When exporting the floor plan with the following actions, you can either highlight the drawing or use the border highlight feature; you cannot use both highlighting formats.

To generate the floor plan with both a highlight and border highlight, use Export What you See to DOCX command

To export floor plans on the screen to Word (Export What You See to DOCX)

With the Export What You See to DOCX option, the Space Console exports drawings with the highlights, layers, and zoom as currently shown on screen in a low-resolution format (PNG).

  1. Load the Space Console and select the floor plans you wish to export.
  2. If desired, adjust the zoom setting. Archibus will export these drawings at the current zoom setting and will present them as an image in the Word document.
  3. Use the Highlights or Border options to set the appropriate highlights. Note that with this command supports highlighting a floor plan by both a highlight and a border highlight. For details, see:
  4. Use the Labels option to add the labeling text to the floor plan. For details, see Label the Rooms on the Floor Plan Drawing.

    When you export the drawing, the system does not export the legend. Therefore, you may wish to match the label to one of your highlight options so that readers know the values that the colors represent. For example, if you are highlighting by Room Type, you might want to display Room Type as the label so that viewers can immediately see each room's assigned room type

  1. Click the Export button, located in the floor plan ribbon. Click "Export What You See to DOCX."


  1. Archibus exports the drawings on the screen with their current zoom, highlights, and labels as an image (low-res PNG) and places the image in a Word document.
  2. Archibus prompts you to open the Word document or save it.
  3. Once you open the Word document, you can resize the image of the floor plan. You might want to change the Word document to landscape mode and resize the image accordingly.

To export floor plans in the floor list to PDF or DOCX

This procedure describes exporting the floor plans shown in the Floors list to PDF or DOCX. This generates a formatted report with highlights, labels, and legends.

  1. Load the Space Console .
  2. Use the filter to display the list of floor plans that you want to include in the report. You do not need to select these floor plans or open them. All floor plans listed in the Location List will be included in the generated document.

    Tip: If you select the check box for at least one drawing in the floors list, that drawing appears in the drawing pane, so that you can see how the selections you make affect the highlights and labels. Printing what you see can be useful in certain situations, for example, if you want to print multiple floors on the same sheet of paper, select the check box for more than one floor plan in the floors list.

  3. Select a highlight and label from the lists. The selections you make determine the legend, labels, and label height.

    For information on setting up highlights, see:

  4. Click the Export button, located in the floor plan ribbon. Click "Generate PDF of Floors in Location List" or "Generate DOCX of Floors in Location List." Note that if you generate a DOCX, labels are not included.

  5. Archibus opens a new browser window and presents a status bar showing its progress in generating the report. When Archibus completes the report, you can open it by clicking the file name for the generated report. You will see that the Space Console exported the full extents of drawing's highlights and layers in the original EMF file in the high-res format (EMF).

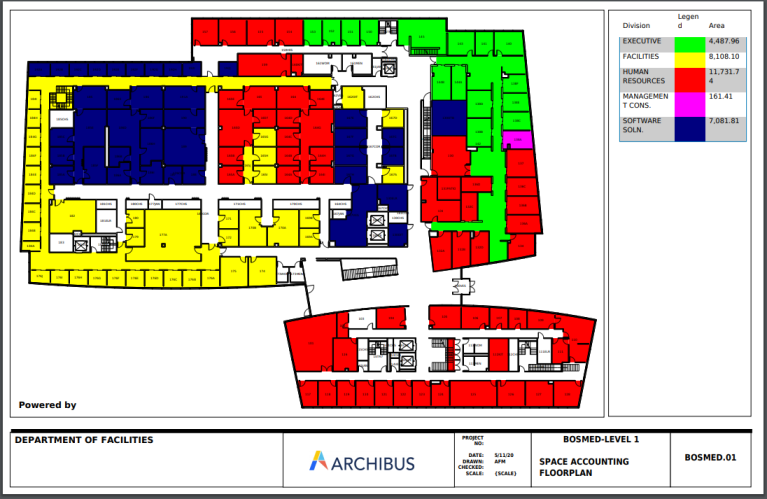

  6. When you examine the report, you will see that it lists on each page a highlighted floor plan with labels and a legend of the highlight colors.
  7. You can save the generated PDF to your own descriptive name and location.

    Next steps

    • If you want to set print options, you can do so as long as you are exporting to PDF. For example, if you want to adjust the label height that affect the text size, you can do so by making ad hoc adjustments that affect this print session only. See Setting print options.
    • Select background layers to include in the export. See Selecting background layers.

To generate a formatted ad hoc report

  1. Load the Space Console.
  2. Use the filter to display the list of floor plans that you want to include in the report. You do not need to select these floor plans or open them. All floor plans listed in the Location List can be included in the PDF.
  3. Use the Highlights option to set the desired highlight. For details, see Highlight Rooms in your Floor Plan by One Property.
  4.  Use the Labels option to add the labeling text to the floor plan. For details, see Label the Rooms on the Floor Plan Drawing.
  1. Click the Export button, located in the floor plan ribbon. Click "Generate Ad Hoc PDF Report."

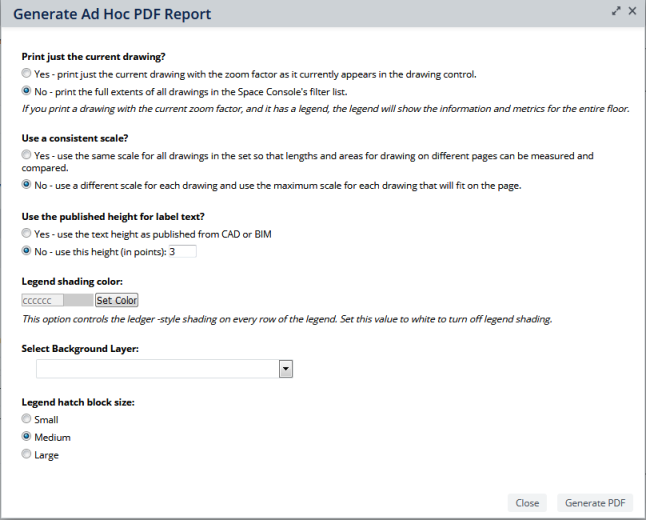

  2. Complete the options in the resulting form. For information, see Options for Printing Drawings from the Space Console
  3. Archibus opens a new browser window and presents a status bar showing its progress in generating the report. When Archibus completes the report, you can open it by clicking the file name for the generated report.
  4. When you examine the report, you will see that it lists on each page a highlighted floor plan with labels and a legend of the highlight colors.
  5. You can save the generated PDF to your own descriptive name and location.

Zoom setting and export format

Based on the current drawing’s zoom level, the Space Console exports and prints the drawing using different formats.

Zoom Setting Applies to
Export drawings with set zoom level in low-res format (PNG)

“Export What you See to DOCX” command.

“Generate Ad Hoc PDF Report” command, when you choose “Yes” to “Print just the current drawing?” option AND you change the zoom level of the drawing.
Export the full extents of a drawing's highlights, layers in original EMF file in high-res format (EMF)

This applies to both “Export Floor Plans in Floors List to PDF” and “Export Floor Plans in Floors List to Word” commands.

This also applied to “Generate Ad Hoc PDF Report” when:

  • You choose “Yes” to “Print just the current drawing?” option AND do not change the zoom level of the drawing.
  • You choose “No” to “Print just the current drawing?” option
