Once you highlight and label a floor plan, you may want to share it with others who do not have access to the ARCHIBUS system. For example, you may want to:
To share floor plans with staff who do not have access to the ARCHIBUS system, you have two options:

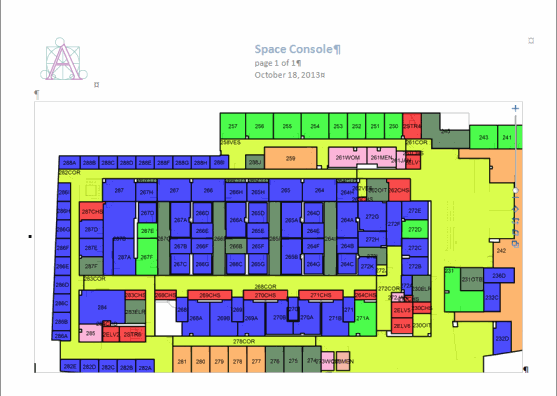

For example, the below image shows the floor plan exported to a Word document.
When you export the drawing, the system does not export the legend. Therefore, you may wish to match the label to one of your highlight options so that readers know the values that the colors represent. For example, if you are highlighting by Room Type, you might want to display Room Type as the label so that viewers can immediately see each room's assigned room type
