Define Equipment Standards

Before you create an equipment inventory you can establish the types of equipment at your company -- the equipment standards. Typically, a company will purchase multiple quantities of like equipment items. For example, it is likely that your company has purchased the same type of telecommunications equipment for multiple offices. Archibus defines this type of telecommunications equipment as an equipment standard.

Use the Define Equipment Standards task to add new equipment standard records, and to review, edit or delete existing records. You can then associate these standards with the equipment records you create. The Define Equipment Standards task uses a drill-down selection list and smart search console to help you locate standards you want to edit or review.

If you would like to take advantage of the View Configuration feature to define fields or promote fields in the Equipment Standards table, work with the Manage Equipment and Standards task.

Adding and Editing Equipment Standards

To add or edit equipment standards:

  1. Access the Define Equipment Standards task (ab-eqstd-edit.axvw) from a locations listed at the top of this topic.

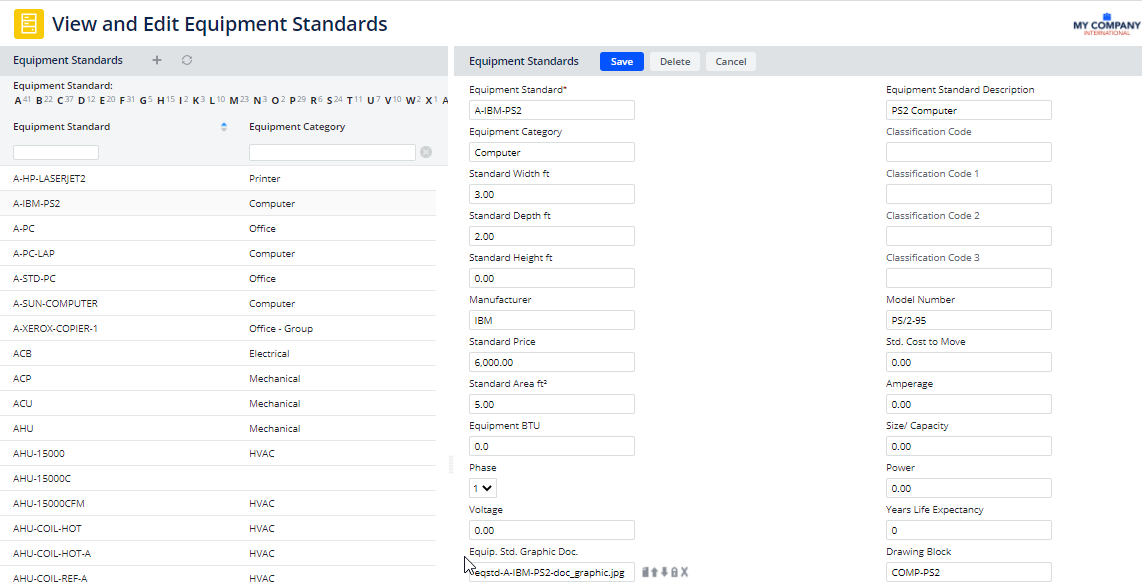

    The view for editing and adding equipment standards appears.

  2. Do one of the following:
    • To add a new record, from the Equipment Standards list, click Add New.
    • To edit a record, select the record in the Equipment Standards list.

    The Equipment Standard pane displays the fields for the record.

  3. Enter the following information as needed. Although these fields are not required, the more information you enter, the more useful the standard becomes. You can overwrite information for individual assets that differ from the standard.

    Field Description
    Equipment Standard Enter a value to uniquely identify this equipment standard.

    This is a unique value that identifies the standard, such as PC1, for a certain type of personal computer.

    Equipment Standard Description Enter a description that helps identify the equipment used by this standard, such as "PC used by administrative staff."
    Equipment Category

    Enter an equipment category, such as PRINTER, HVAC, or SAFETY. The Category enables you to manage and review equipment by the Category to which it is assigned.

    Classification Code
    Classification Code 1, 2, 3     		Enter the CSI classification code for this standard. By associating a classification code with a standard, you assign it to all equipment assigned to the standard. Assigning an equipment item to a classification code is important when using the CSI Classification system with the Assessment applications. If you use the default CSI classifications, you can connect your condition and environment sustainability assessment items to industry-standard guidelines for replacement, maintenance, and repair costs.

    Standard Height

    Standard Width

    Standard Depth

    Enter the standard dimensions of this equipment. (The program does not use these values when generating asset symbols.)
    Highlight Pattern-Acad

    This AutoCAD highlight pattern field enables you to set a specific highlight color to each equipment standard, to be used for floor plan highlights or in the View Equipment Plan report.

    This is the color by which you will highlight in floor plan drawings equipment of this standard. Each standard should have a its own color so that you can clearly distinguish the equipment of each standard on floor plans.

    Click the ellipses button to access a form for specifying the color. Once you set a color, the Edit Equipment Standard form lists the color's AutoCAD number in the Highlight Pattern - Acad field.

    For information, see Defining Highlight Patterns.

    Manufacturer

    Model Number

    Enter the company that produces this equipment, and the equipment's model number. This is useful for tracking warranty information, or for locating equipment if the manufacturer announces a recall or safety warning.

    Standard Price

    Enter the price you typically pay for this type of equipment.
    Standard Cost to Move Enter the standard cost to move a single item of this equipment standard.
    Standard Area ft2

    Enter the area that this equipment requires. You can enter the area the equipment occupies (its footprint), or you might also include its circulation or operating area. This is helpful for equipment that needs space around it for safe or effective operation, or for servicing. Including the area equipment requires is helpful when designing the layout of any space that has equipment in it.

    Amperage

    Equipment BTU

    Power

    Voltage

    		 Use these fields as needed to record operational information for this equipment standard.

    Size

    Capacity

    Use this field to document the equipment's size or capacity.
    Phase Select whether this equipment asset uses single-phase (1), two-phase (2), or three-phase (3) electrical power.
    Years Life Expectancy

    Include the Years Life Expectancy based on industry standards for each specific equipment standard. Year Life Expectancy is the mean service life in years assigned to the asset. The application determines the life remaining (Remaining Life field) for an asset based on Years Life Expectancy minus the actual Equipment Age (yrs).
    Equip. Std. Graphic Use this document field to hold a picture of the equipment standard. The View Equipment Plan and the Equipment Standards Book report uses this field to show a picture of the equipment item.
    Drawing Block

    Enter the name of the block, such as COMP-IBM, that represents the equipment standard and is used for asset inserting or populating equipment in drawings. The block you reference can be either a unit block or a full-scale block.

    Note: The Equipment Standards table comes pre-filled with standards describing lobby kiosk equipment and conference room kiosk equipment (the KIOSK-LOBBY and KIOSK-CONFERENCE) equipment standards. To specify an equipment item as a kiosk, you assign it one of these equipment standards and then register it. Note that an item with equipment standard is KIOSK-CONFERENCE must be located in a room whose Reservable Meeting Space field is set to Yes. See Define Kiosks.

  4. Click Save,

Deleting Equipment Standard Records

To delete equipment standard records:

  1. From the Equipment Standard list, select the standard to be deleted.

    The Equipment Standard pane displays the fields for the selected record.

  2. Click Delete at the top of the Equipment Standards pane.

    A message asks you to confirm the deletion.

  3. Click OK.

    The records is removed from the database.
